Combo Temp and Pressure Sensor
Bosch

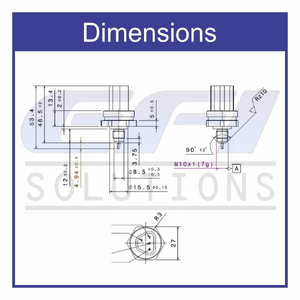

Bosch combination oil pressure and temperature sensor. It features M10x1.0 threads (requires an adapter for common 1/8" NPT ports) and a 5-pin connector. The sensor provides analog outputs suitable for pressure (voltage-based) and temperature (resistance-based NTC).
Part Numbers
- 0 261 230 340
- 131-005
Applications
- 2013-2015 Porsche 918 Spyder
- 2016-2021 Mazda 2
- 2016-2021 Mazda 3
- 2016-2021 Mazda 6
- 2016-2021 Mazda CX-3
- 2016-2021 Mazda CX-5
- 2016-2021 Mazda CX-9
- 2016-2021 Mazda CX-30
Alternate / Cross-Reference Part Numbers
- HY539G756AA
- SH0118541
- 13F0517CP
- 9A160620300
- Standard Motor Products: PS661
- VEMO: V32730026
- WVE: 1A16076
- PY8V18541B (often yields best search results)
Connector
- Bosch 5-pin sensor connector
- Part numbers: 105-059, F02U.B00.751-01

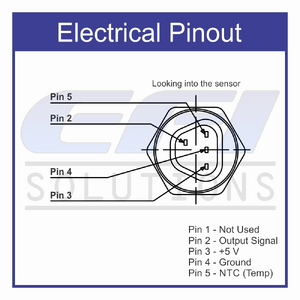

- Bosch 131-005 Pinout
Calibration Charts

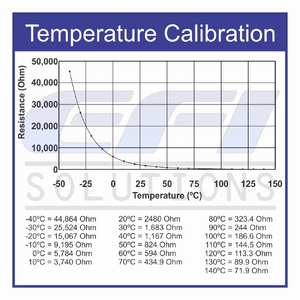

- Bosch 131-005 Resistance to Temperature — NTC resistance vs. temperature curve (use "Std Bosch NTC" or import table for temp calibration; often works with 4.6kΩ pull-up or AN Temp input).

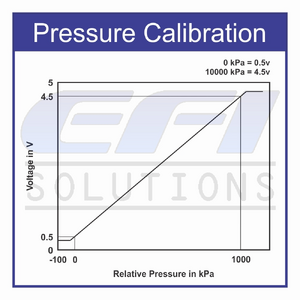

Bosch 131-005 Resistance to Temperature Chart - Bosch 131-005 Voltage to Pressure — Voltage output vs. pressure (typically 0-10 bar / 0-145 psi range, ratiometric to 5V supply).
Bosch 131-005 Voltage to Pressure Chart
